OMNITRONIC AM-21

Sonic maximizer

FEATURES
Maximize your sound with the sound enhancement system AM-21!

Effective sound enhancement system with sonic maximizer and 2-channel noise reduction
Improves the performance of your sound dramatically by adding clarity, dimension and depth
Produces high-end transparency and super-tight bass
Separate bass and definition control and bypass switch on the sonic maximizer section
Independent section for noise reduction with threshold, release and level control per channel
Bypass switch allows instant comparison of original sound with processed sound per channel
Precise 7-digit LED meter with clip LED for output level per channel

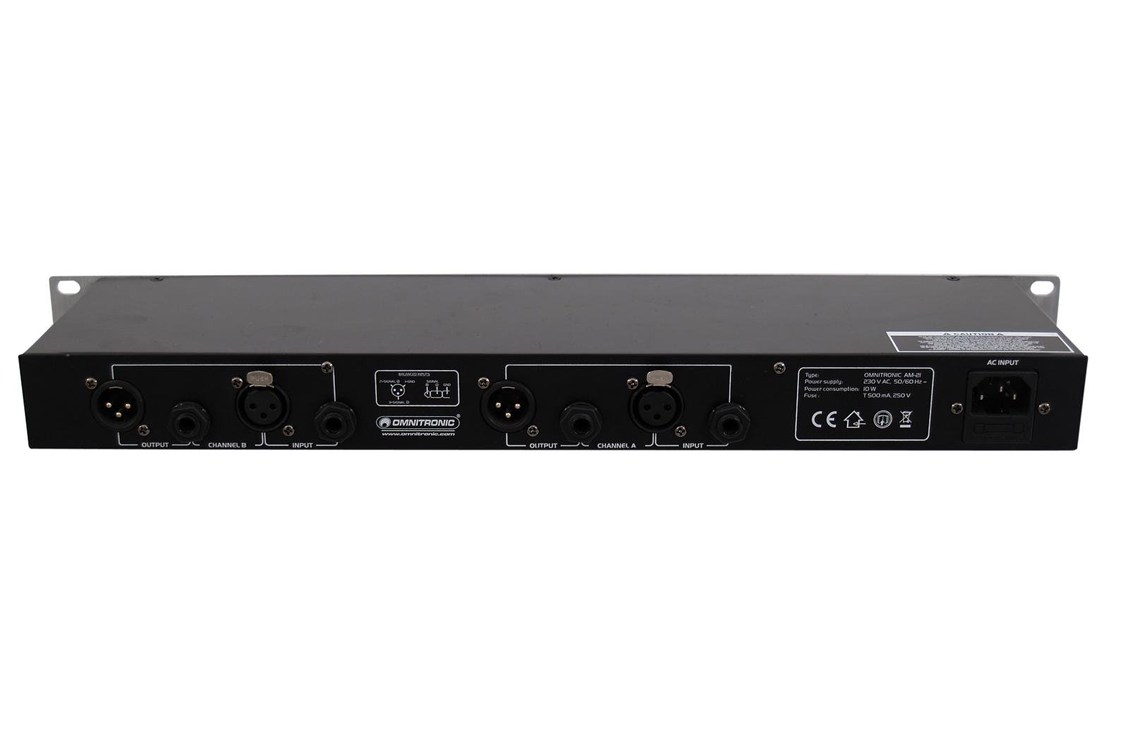

Inputs and outputs via balanced XLR connectors and 6.3 mm jack connectors
Rack installation, 1 U

TECHNICAL SPECIFICATIONS
Power supply: 230 V AC, 50 Hz
Power consumption: 10 W
Frequency range: 20 - 20000 Hz
S/N ratio: >90 dB
THD: <0,05 % at 1 kHz
Dimensions: Width: 48,3 cm
Depth: 12 cm
Height: 4,45 cm
Weight: 2 kg
S/N ratio: >90 dB
THD: 0.05%
Crosstalk: >80 dB, -3 dB
Bass definition: 0 to +9 dB
Input impedance: 10/20 kohms (unbal./bal.)
Output impedance: 300/150 ohms (unbal./bal.)
Connection: 6.3 mm jack (unbal.), 3-pin XLR (bal.)
Dimensions (W x D x H): 483 x 120 x 46 mm
