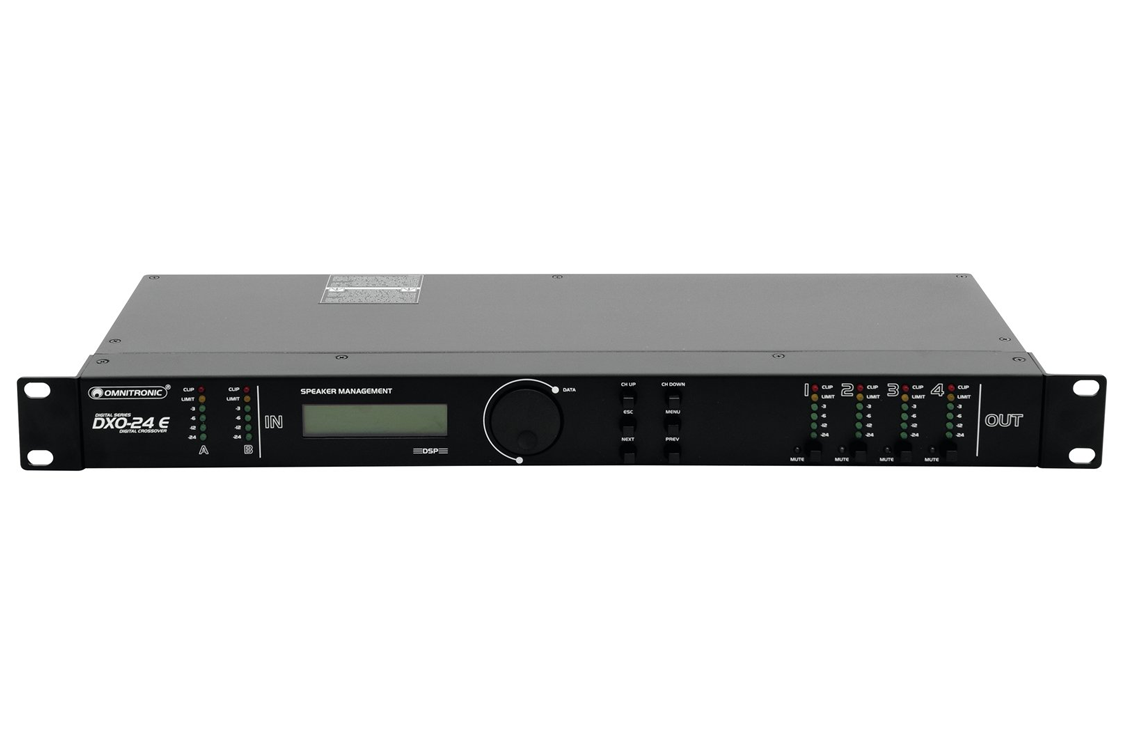

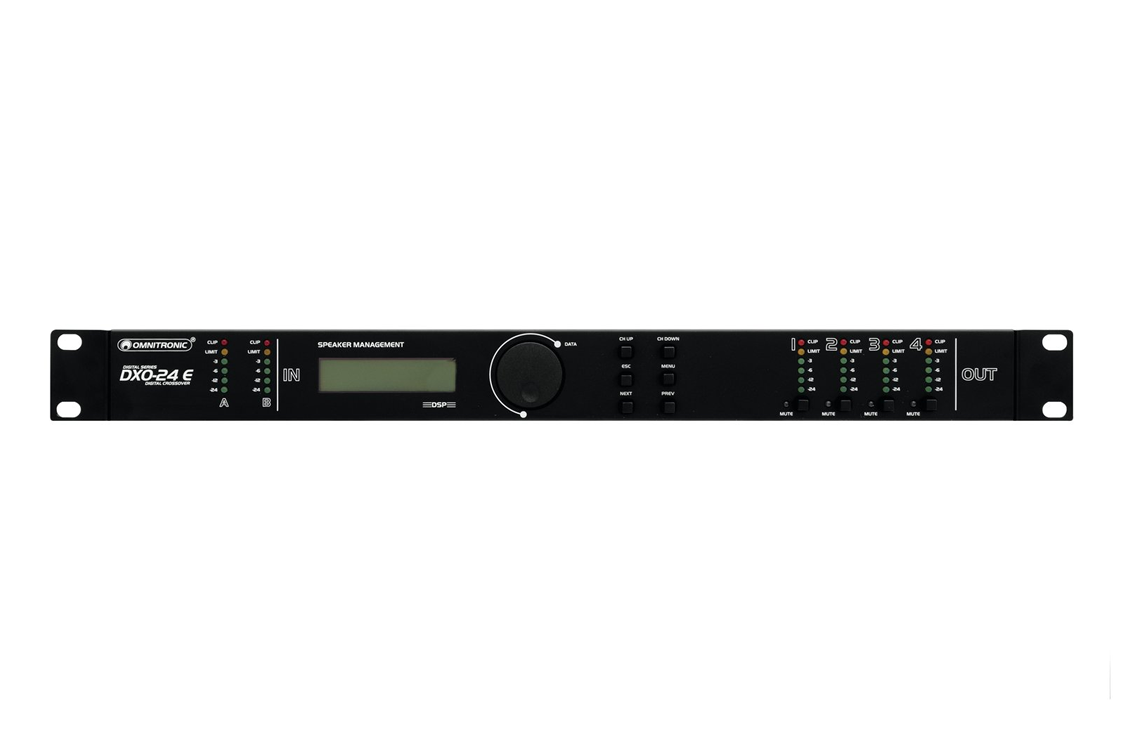

OMNITRONIC DXO-24E

Digital Controller

FEATURES
Digital stereo active crossover with 2 inputs and 4 outputs, incl. software

Flexible routing configurations for all standard mono and stereo output operating modes
2 analog inputs and 4 analog outputs (XLR)
Active frequency filter types (Bessel, Butterworth and Linkwitz-Riley) with slopes up to 24 dB/octave split up the audio signal into different frequency bands

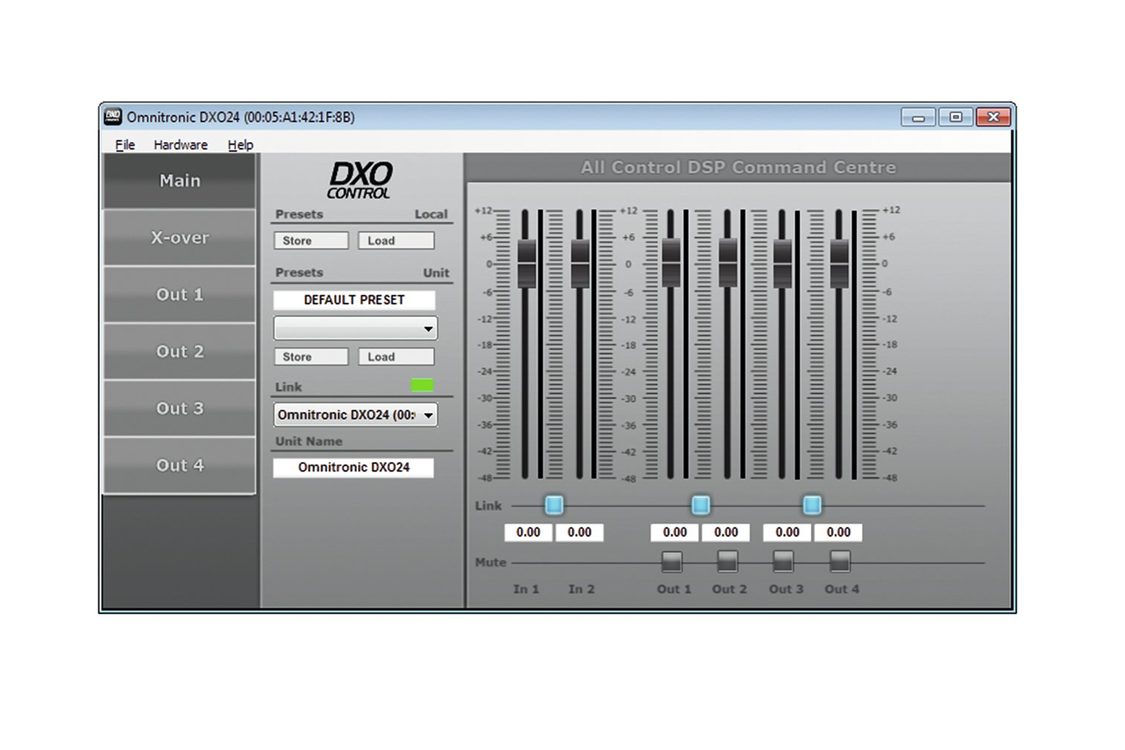

Incl. software editor (for PC and Mac) for remote control via computer through USB interface: store, transfer, and manage your presets
Up to 30 user presets storable in the device via software
Alphanumeric LCD screen with 2 lines of 16 characters each
Input sensitivity digitally adjustable
Inputs and outputs with 4-digit LED level meter as well as clip and limit LED indicator
Mute switch with LED indicator per output
7-band parametric EQ per output
Up to 7 ms signal delay adjustable for the outputs
Output limiter with adjustable limits and automatic attack and release settings as overload protection for your amplifying system
Switchable phase
Lock function for protecting the program settings
Windows XP, Vista, 7, 10 and Mac OS X 10.5.8 and better
Digital signal processor
The device can be connected via USB to the PC in connection with DXO Software
The firmware can be updated via the PC connection
(19") 48.3 cm rack installation 1 U

TECHNICAL SPECIFICATIONS
Power supply: 100-240 V AC, 50/60 Hz
6 V DC 800 mA
Power connection: Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
Frequency range: 10 - 30000 Hz
THD: <0,005 % at 1 kHz
DSP: Digital signal processor
Crossover frequency: 20-20000 Hz
Impedance: Input 10 kOhm
Output 50 Ohm
Gain: Output: -50 dB to +12 dB
Filter: Linkwitz-Riley; Butterworth; Bessel; 6db/oct; 12db/oct; 18db/oct; 24db/oct
Delay: 0 - 5 ms
Dynamic range: Input: 114 dB
Output: 110 dB
Sample rate: 67 kHz

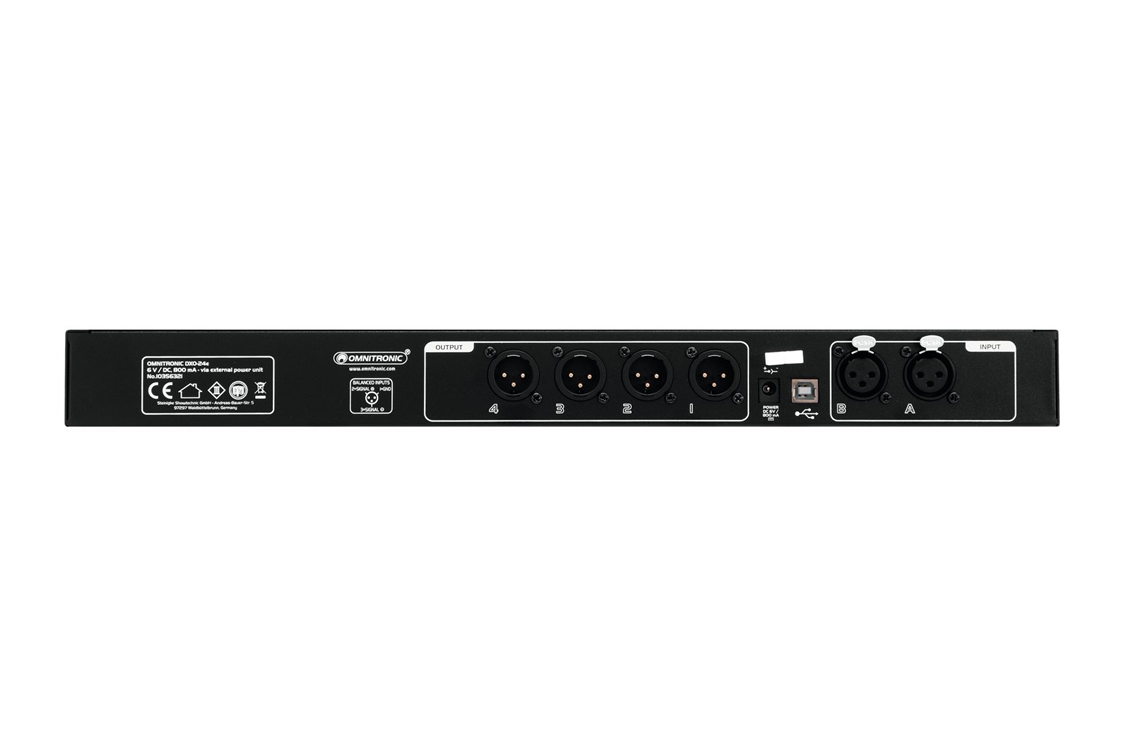

Connections: Input: 2 x line via 3-pin XLR
Output: 4 x line via
